High Shear Dispersing Emulsifier
High Shear Dispersing Emulsifier
High Shear Dispersing Emulsifier

Food Shampoo APIs High Shear Dispersing Emulsifier Vacuum Emulsifier Homogenizer

MOQ: 1 Pieces
Delivery time: 15 Day
Place of Origin: CHINA Brand Name: Yuan Certification: ISO9001 Model Number: ZJR-5/1300 Payment & Shipping Terms Minimum Order Quantity: 1 Price: Provide according to demand
Product Details
Specifications
Highlight:

Food High Shear Dispersing Emulsifier

Shampoo High Shear Dispersing Emulsifier

APIs vacuum emulsifier homogenizer

Material:
Stainless Steel 304
Design Capacity:
10L
Working Capacity:
8L
Heating Method:
Electrically Heated
Discharging Method:
Tilt Unloading
Vacuum In The Pot:
-0.09Mpa
Homogenizer Speed:
2800
Homogenizer Power:
0.55KW








Description

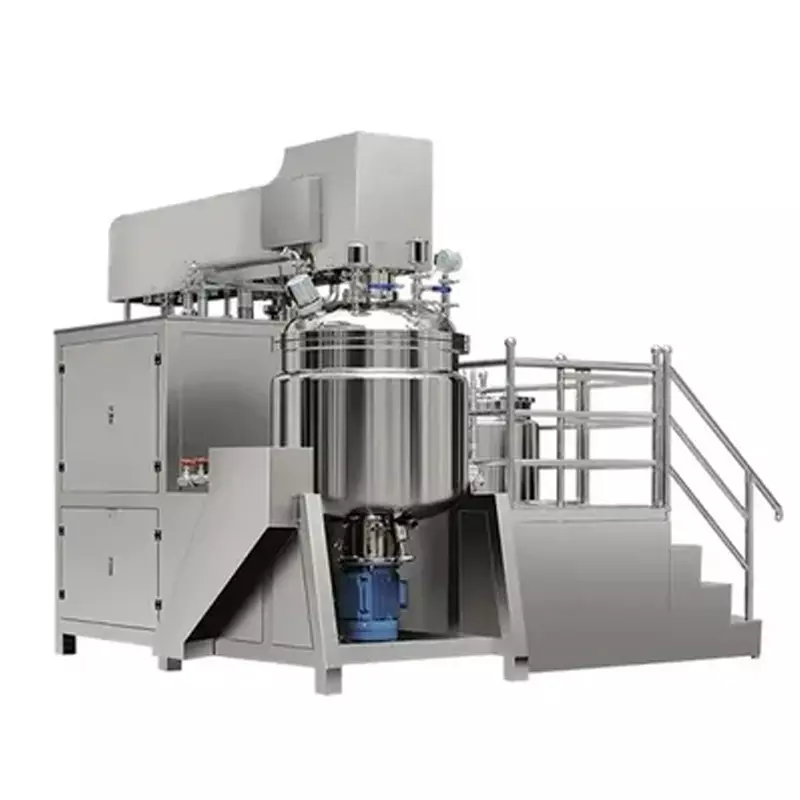

Food Shampoo APIs High Shear Dispersing Emulsifier Vacuum Emulsifier Homogenizer

Vacuum Emulsifying Mixer Shampoo Making Machine Cosmetic Cream Mixing Homogenizer Food Hygiene Grade Vacuum Mixing Equipment


Applications:
Cosmetics and Personal Care Products:
Formulation of creams, lotions, serums, and emulsions.
Mixing and dispersing pigments, fragrances, and active ingredients.
Pharmaceuticals:
Preparation of drug formulations, suspensions, and emulsions.
Homogenization of APIs (Active Pharmaceutical Ingredients) with excipients.
Food and Beverage Industry:
Production of emulsions for sauces, dressings, and beverages.
Mixing and dispersing of ingredients in food products such as mayonnaise and salad dressings.
Chemical Industry:
Emulsification of oils, solvents, and polymers for various applications.
Production of paints, coatings, and adhesives with consistent properties.





Specific parameter requirements of emulsifier:

10L emulsifying pot Specific parameters
Enclosure material/thickness 304L/3mm
Inner Layer Material/Thickness 316L/3 mm
Sandwich material/thickness 304L/3 mm
Matching water phase pot
Enclosure material/thickness 304L/3mm
Inner Layer Material/Thickness 316L/3 mm
Sandwich material/thickness 304L/3 mm
Matching oil phase pot
Enclosure material/thickness 304L/3mm
Inner Layer Material/Thickness 316L/3 mm
Sandwich material/thickness 304L/3 mm
Design capacity 10L
Working capacity 8L
Enclosure material/thickness 304L/Standard
Inner Layer Material/Thickness 316L/Standard
Sandwich material/thickness 304L/Standard
Service life Over 10 years
Homogenizer power 0.55 KW
Homogenizer speed 2800
Homogenization mode Upper homogenization
Lid opening method Manual or electric
Heating method Electric heating
Discharge method Inclined discharge
Sandwich operating pressure 0.3 MPa
Vacuum degree in the pot -0.09 MPa
Overall dimensions (m) 0.8*0.55*1.43
Wearing parts 1 year spare parts. spare parts
Warranty Period More than 1 year
Installation and The supplier is responsible for commissioning



Matching water phase pot
Design capacity 5L
Working capacity 4L
Enclosure material/thickness 304L/Standard
Inner Layer Material/Thickness 316L/Standard
Sandwich material/thickness 304L/Standard
Sandwich operating pressure 0.3 MPa
Lid opening method Movable lid opening
Heating method Electric heating
Discharge method Upper suction material
Stirring mode Down stirring
Stirring power 0.025 KW
Stirring speed 1440r/min
Matching oil phase pot
Design capacity 5L
Working capacity 4L
Enclosure material/thickness 304L/Standard
Inner Layer Material/Thickness 316L/Standard
Sandwich material/thickness 304L/Standard
Lid opening method Movable lid opening
Heating method Electric heating
Discharge method Upper suction material
Stirring mode Upper (lower) stirring
Stirring power 0.025 KW
Stirring speed 1440r/min



Other specific requirements:

1.The equipment is accompanied by the product manual.

2.The supplier provides equipment assembly drawings and pipeline installation drawings. When the equipment needs maintenance, the buyer shall notify the supplier in writing, and the supplier will arrive within 2 days after receiving the notice to ensure timely after-sales service.

3.Equipment. Supplier warranty for one year, lifetime maintenance.

4.This annex has the same legal effect as the contract.

5.The inner wall of the pot (316L) requires mirror polishing 300 mesh, equipment size:

6. Various pipelines are required to be made of stainless steel (316L material is required for the contact material part)

7. Dead weight of 10L emulsifier: about 500Kg
