20L - 200L Stainless Steel Vacuum Emulsifying Machine cosmetic high shear emulsifier mixer

MOQ: 1 Pieces

Delivery time: 15 Day

Place of Origin: CHINA Brand Name: Yuan Certification: ISO9001 Model Number: ZJR-5/1300 Payment & Shipping Terms Minimum Order Quantity: 1 Price: Provide according to demand

Product Details

Specifications

Highlight:
20L Vacuum Emulsifying Machine
,
200L Vacuum Emulsifying Machine
,
high shear emulsifier mixer

Material:	Stainless Steel 304	Design Capacity:	10L
Working Capacity:	8L	Heating Method:	Electrically Heated
Discharging Method:	Tilt Unloading	Vacuum In The Pot:	-0.09Mpa
Homogenizer Speed:	2800	Homogenizer Power:	0.55KW

Description

20L - 200L Stainless Steel Vacuum Emulsifying Machine cosmetic high shear emulsifier mixer

20L-200L Stainless Steel Vacuum Emulsifying Mixing Machine Homogenizer Mixer For Cosmetics Industries

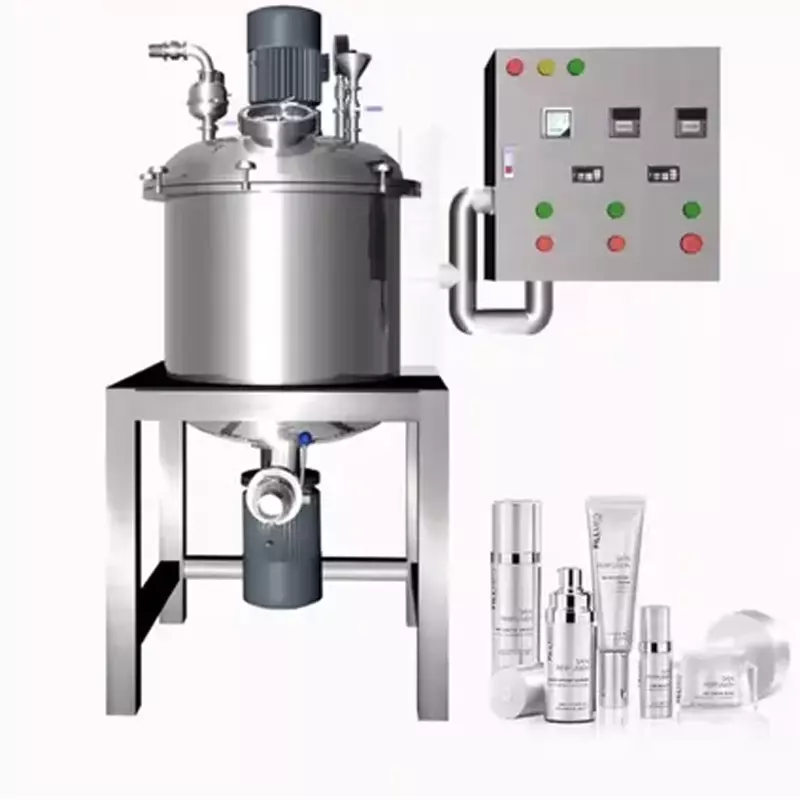

Vacuum emulsifying mixer machine consist of Main emulsifying tank, Vacuum system, Fixed type vacuum system (OPTION), Mixing system, Homogenizer system and Heating/Cooling system. All those functions work together to produce batches of good cosmetics/chemical/food products.

Application:
Cosmetic Industry: Cream, Lotion, Lipstick, Shampoo
Food Industry: Mayonnaise, Dressing, Jam, Butter, Margarine.
Chemical Industry: Polyester, Synthetic fiber Paint
Industry: Paints, Synthetic resin paint
Others: Color, Wax, Shoe cream, Coating liquid

Specific parameter requirements of emulsifier:

10L emulsifying pot	Specific parameters
Enclosure material/thickness	304L/3mm
Inner Layer Material/Thickness	316L/3 mm
Sandwich material/thickness	304L/3 mm
Matching water phase pot
Enclosure material/thickness	304L/3mm
Inner Layer Material/Thickness	316L/3 mm
Sandwich material/thickness	304L/3 mm
Matching oil phase pot
Enclosure material/thickness	304L/3mm
Inner Layer Material/Thickness	316L/3 mm
Sandwich material/thickness	304L/3 mm
Design capacity	10L
Working capacity	8L
Enclosure material/thickness	304L/Standard
Inner Layer Material/Thickness	316L/Standard
Sandwich material/thickness	304L/Standard
Service life	Over 10 years
Homogenizer power	0.55 KW
Homogenizer speed	2800
Homogenization mode	Upper homogenization
Lid opening method	Manual or electric
Heating method	Electric heating
Discharge method	Inclined discharge
Sandwich operating pressure	0.3 MPa
Vacuum degree in the pot	-0.09 MPa
Overall dimensions (m)	0.80.551.43
Wearing parts	1 year spare parts. spare parts
Warranty Period	More than 1 year
Installation and	The supplier is responsible for commissioning

Matching water phase pot
Design capacity	5L
Working capacity	4L
Enclosure material/thickness	304L/Standard
Inner Layer Material/Thickness	316L/Standard
Sandwich material/thickness	304L/Standard
Sandwich operating pressure	0.3 MPa
Lid opening method	Movable lid opening
Heating method	Electric heating
Discharge method	Upper suction material
Stirring mode	Down stirring
Stirring power	0.025 KW
Stirring speed	1440r/min
Matching oil phase pot
Design capacity	5L
Working capacity	4L
Enclosure material/thickness	304L/Standard
Inner Layer Material/Thickness	316L/Standard
Sandwich material/thickness	304L/Standard
Lid opening method	Movable lid opening
Heating method	Electric heating
Discharge method	Upper suction material
Stirring mode	Upper (lower) stirring
Stirring power	0.025 KW
Stirring speed	1440r/min
